Globe Valve Manufacturer for Precise Flow Control
High-performance globe valves engineered for accurate flow regulation, reliable sealing, and long-term operation in demanding industrial environments. Our globe valves are designed to handle high pressure, high temperature, and critical control applications.
-
![Conventional Disc Globe Valve]()

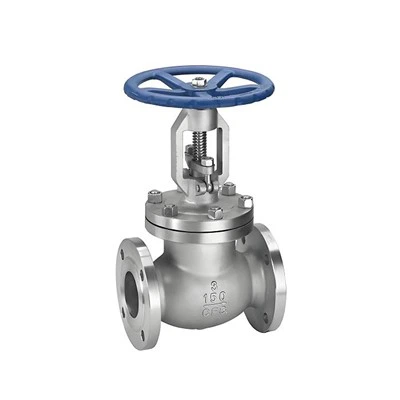

Conventional Disc Globe ValveThe Conventional Disc Globe Valve is designed for the precise regulation and shut-off of fluid flow within pipelines. Suitable for medium-to-high pressure applications, it is widely utilized in theread more -
![Pressure Seal Globe Valve]()

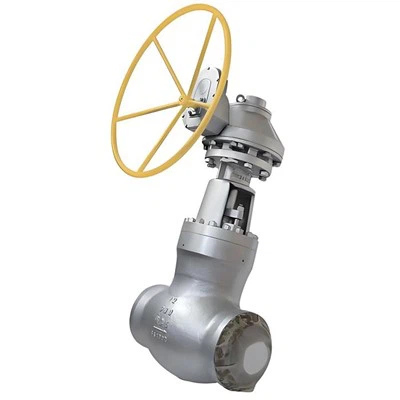

Pressure Seal Globe ValveThe Pressure Seal Globe Valve employs a self-tightening sealing structure and is suitable for flow regulation and shut-off control under high-temperature and high-pressure operating conditions; it isread more -
![Forged Globe Valve]()
Forged Globe ValveThe Forged Globe Valve is a type of valve that regulates and shuts off flow by moving the valve disc along the axis of the valve seat. It is mainly used in pipeline systems that require flow controlread more -
![Cryogenic Globe Valve]()
Cryogenic Globe ValveThe Cryogenic Globe Valve is a shut-off valve designed for ultra-low temperature operating conditions down to -196°C. It is utilized for the flow control and reliable shut-off of LNG, liquefiedread more
Specification
|
Product name |
Butterfly valve |
|
Size Range |
2" ~ 42" |
|
Pressure Range |
ANSI 150-300 |
|
End Connection |
RF/BW |
|
Operation |
Manual operation, Actuated operation |
|
Seat |
Soft Seat in PCTFE ,Metal to Metal, Metal+Graphite |
|
Fugitive Emission Test |
ISO 15848-2 |
Key Features
Precise Flow Regulation
Designed for accurate throttling, making it ideal for systems requiring controlled flow adjustment.
Excellent Sealing Performance
Advanced sealing design ensures reliable shut-off under high pressure and temperature conditions.
High Pressure & Temperature Resistance
Suitable for demanding environments such as steam systems and power plants.
Stable and Smooth Operation
Optimized stem and disc design ensures consistent performance and easy operation.
Quick Globe Valve Selection Guide
Application-Based Selection
|
Application |
Recommended Type |
Key Advantage |
|
Steam Systems |
Pressure Seal Globe Valve |
High pressure resistance |
|
Chemical Industry |
Bellows Seal Globe Valve |
Zero leakage |
|
General Industry |
Standard Globe Valve |
Cost-effective |
|
High Flow Systems |
Y-Type Globe Valve |
Lower pressure drop |
Selecting the right material is critical for valve longevity. We provide a full range of metallurgical options to match your medium and temperature requirements.
Carbon & Low-Temp Steel: ASTM A216 WCB, A352 LCB/LCC for general industrial and oil/gas service.
Alloy Steel (High-Temp Service): ASTM A217 WC6, WC9, and C12A, specifically engineered for superheated steam and power plant applications up to 593°C.
Corrosion-Resistant Alloys: CF8, CF8M, CF3M, and Duplex Steel for chemical processing and marine environments.
Hard-Facing Trim: As a standard for high-pressure series, we apply Stellite® No.6 (Cobalt-based alloy) to the seat and disc to prevent erosion, galling, and wire-drawing.
Chemical Analysis (PMI): Verifying the alloy composition of every body casting.
Dimensional Verification: Ensuring critical tolerances meet ASME standards for perfect field installation.
High-Pressure Hydrostatic Test: Testing the shell and seat at 1.5x and 1.1x the rated pressure respectively.
Low-Pressure Air Test: Ensuring bubble-tight sealing performance for gas and critical services.
Surface Finish Inspection: Ensuring coatings (Epoxy or heat-resistant paint) meet thickness and adhesion requirements for C3-C5 corrosion classes.
FAQ
As one of the leading globe valve manufacturers and suppliers in China, we offer a wide range of products with superior quality. We warmly welcome you to buy high quality globe valve made in China here from our factory. We also accept customized orders.
