Trunnion Mounted Ball Valve Manufacturer for High-Pressure Applications
Heavy-duty trunnion mounted ball valves engineered for high-pressure, large-diameter pipeline systems, ensuring reliable shut-off, long service life, and maximum operational safety. Designed for critical industries such as oil & gas, petrochemical, and power generation, our valves deliver stable performance under extreme conditions.
-
![2pc Trunnion Mounted Ball Valve]()
2pc Trunnion Mounted Ball ValveThe 2pc Trunnion Mounted Ball Valve is a shut-off device that uses upper and lower bearings to fix the ball, achieving separation of opening, closing, and sealing. It is used in piping systems withread more -

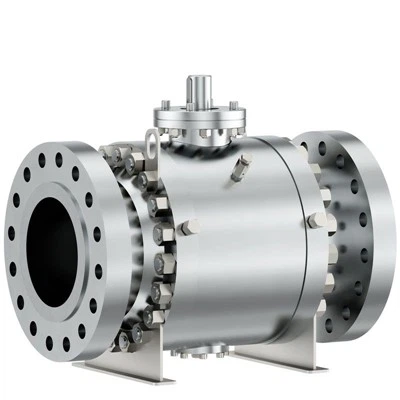

![3pc Trunnion Mounted Ball Valve]()
3pc Trunnion Mounted Ball ValveThe 3-Piece Trunnion-Mounted Ball Valve features a split-body design combined with a trunnion-mounted ball structure. It is suitable for high-pressure, large-bore, and long-term continuous serviceread more -

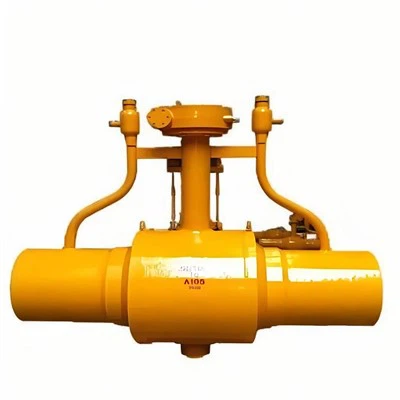

![All Welded Ball Valve]()
All Welded Ball ValveThe All-Welded Ball Valve features a one-piece, fully welded structural design, making it suitable for high-pressure and demanding operating conditions—including natural gas, petroleum, heatingread more
Specification
|
Product name |
Trunnion mounted ball valves |
|
Construction |
2 Pieces Flanged Split Body with |
|
Size |
DN 1/2" – DN 10"(PN10-40/ANSI150-ANSI300) |
|
Rating |
PN10-420 /ANSI 150-2500 |
|
Materials |
ASTM A 105 / ASTM A 479 F304/ ASTM A479 F316 |
|
Seats |
Soft or metal seated |
|
Working temp |
-196 ℃- + 400 ℃ |
Product Configurations
Choose the right configuration based on your installation and maintenance requirements:
2-Piece Trunnion Ball Valve
- Standard design for general industrial applications
- Easy maintenance and reliable performance
- Suitable for pipeline systems
3-Piece Trunnion Ball Valve
- Flexible disassembly for easier servicing
- Reduced downtime during maintenance
- Suitable for systems requiring frequent inspection
All Welded Trunnion Ball Valve
- Designed for buried or long-distance pipelines
- Eliminates external leakage risk
- Ideal for gas transmission systems
Key Features
Double Block & Bleed (DBB) Function
Ensures sealing on both upstream and downstream sides, allowing safe isolation and pressure release.
Low Operating Torque
Trunnion-supported ball reduces friction, enabling smooth operation even in large sizes and high-pressure systems.
Fire Safe Design
Maintains sealing performance under fire conditions, ensuring operational safety in critical environments.
Anti-Static Device
Prevents electrostatic buildup, reducing ignition risk in hazardous applications.
Severe Service & Custom
High-Abrasion & Slurry Service
For media containing sand, scale, or catalysts, soft-seated valves will fail within days. We offer advanced Metal-to-Metal (M2M) sealing technology:
HVOF Coating: We apply Tungsten Carbide (TC) or Chrome Carbide coating using High-Velocity Oxygen Fuel (HVOF) technology. With surface hardness exceeding HRC 70, our balls and seats become virtually immune to abrasive wear.
Scraper Seat Design: Specifically engineered for viscous or crystallizing media, our seat edges act as scrapers to clean the ball surface during every operation, preventing seat damage.
High-Pressure Gas & Rapid Decompression
In high-pressure gas applications (Class 900 and above), "Explosive Decompression" can destroy standard O-rings.
AED Seals: We utilize Anti-Explosive Decompression (AED) certified elastomers (meeting NACE TM0297 or NORSOK M-710) that prevent gas from rupturing the seals during sudden pressure drops.
Lip Seal Technology: For critical sealing, we replace standard O-rings with Spring-Energized PTFE Lip Seals, providing superior chemical resistance and reliable sealing across a wider temperature range.
Each valve undergoes strict inspection and testing:
- Pressure testing (shell and seat)
- Double block & bleed testing
- Fire safe testing
- Material traceability verification
- Dimensional and performance inspection
- 100% final inspection before shipment
FAQ
As one of the leading trunnion mounted ball valves manufacturers and suppliers in China, we offer a wide range of products with superior quality. We warmly welcome you to buy high quality trunnion mounted ball valves made in China here from our factory. We also accept customized orders.
