Introduction

A wafer ball valve is a type of valve that is installed by clamping between pipe flanges and is used to control the flow of liquid or gas media in pipelines.

Specification

MODEL	P10C OR OEM
Construction	1 pc wafer type ball valve
Size	3/8"-8" DN10-DN200
Rating	PN10-40 ANSI 150-300
Connection	RF Flange or other on request

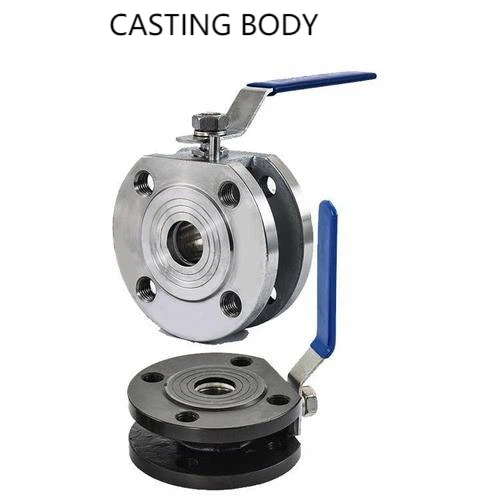

Materials	ASTM A 216 WCB / ASTM A 351 CF8 / ASTM A351 CF8M
Seats	Soft or metal seated
Mounting Pad for actuator	ISO 5211
Working temp.	-196 ℃- + 400 ℃
Face to face	EN 558-1 SERIE 100
Design according to	ASME B16.34, EN 12516-1
Tightness class	Grade A (Zero Leakage) acc. EN 12266-1
Flange Facing	RF according EN 1092-1, PN 10-40, ASME B16.5, ANSI 150-300
Flange drilling, metric holes according to	EN 1092-1, PN 10-40 / ASME B16.5, ANSI 150-300

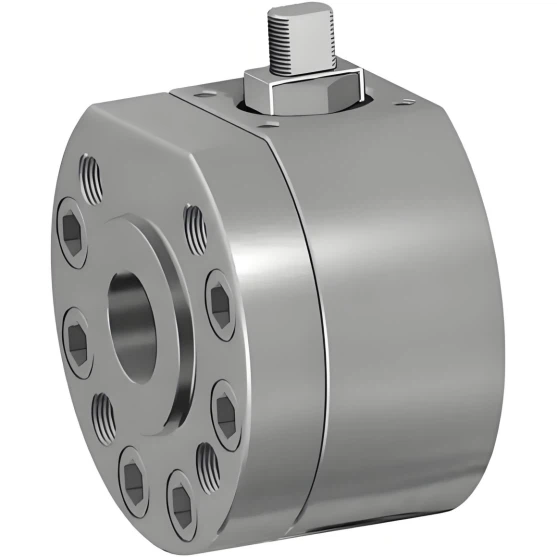

MODEL	P10F OR OEM (FULL BORE)
Construction	1 pc wafer type ball valve
Size	3/8"-4" DN10-DN100
Rating	PN 63-100 ANSI 600
Connection	RF Flange or other on request

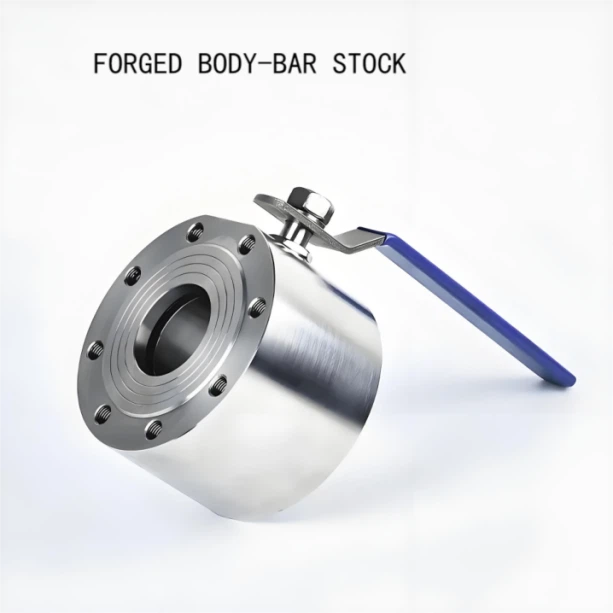

Materials	ASTM A 105 / ASTM A 479 F304/ ASTM A479 F316
Seats	Soft or metal seated
Mounting Pad for actuator	ISO 5211
Working temp.	-196 ℃- + 400 ℃
Face to face	EN 558-1 SERIE 100
Design according to	ASME B16.34, EN 12516-1
Tightness class	Grade A (Zero Leakage) acc. EN 12266-1
Flange Facing	RF according EN 1092-1, PN 63-100, ASME B16.5, ANSI 600
Flange drilling, metric holes according to	EN 1092-1, PN63- 100 / ASME B16.5, ANSI 600

Features

Low Leakage: The ball and seat form a surface contact seal, achieving zero leakage in the closed state, passing the EN 12266-1 Grade A sealing test.

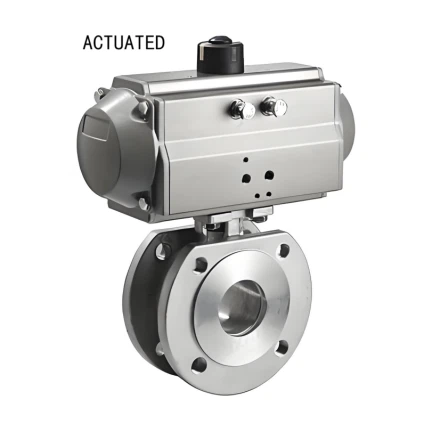

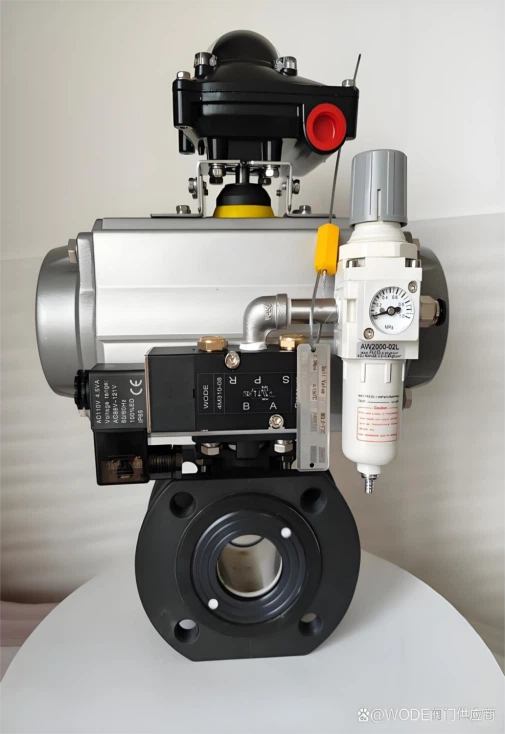

Wide Compatibility: The valve body features an ISO 5211 standard mounting platform on top, allowing direct actuator installation without additional brackets or transition connections.

Extended Operating Conditions: Valve body materials include carbon steel and stainless steel (such as WCB, CF8, CF8M, A105, F304, F316), with optional soft or metal seal structures, enabling the same design to cover low-temperature to high-temperature and corrosive media conditions.

Applications

Oil and Gas: Used for media shut-off in pipelines, enabling fluid flow control during opening and closing to meet pipeline segment isolation and maintenance needs.

Chemical Industry: Used in pipelines carrying various corrosive or reactive media, enabling process switching and equipment isolation through valve opening and closing.

Power Industry: Used in steam or auxiliary system pipelines to achieve media flow control and isolation during system maintenance.

General Industrial Systems: Used in water, air, and general industrial fluid pipelines to achieve opening and closing control and operational switching between upstream and downstream equipment.

FAQ

Q: How to select the sealing type based on operating conditions?

A: For clean media at normal temperature, a soft seal structure is preferred to meet zero leakage requirements; for high-temperature or particulate media, a metal seal should be used to prevent the soft seal material from failing under temperature or erosion conditions.

Q: What precautions should be taken when installing a wafer-type valve?

A: During installation, ensure the parallelism and coaxiality of the flanges on both sides to avoid valve body displacement due to uneven clamping; at the same time, tighten the bolts evenly according to specifications to ensure consistent stress on the sealing surface.

Q: How to reduce the frequency of malfunctions and maintenance in daily use?

A: Avoid keeping the valve in a semi-open state for extended periods to reduce local erosion of the ball and seat; and regularly open and close the valve and check the wear of the sealing surface according to the media conditions to maintain sealing performance.
