Introduction

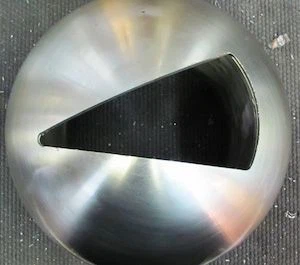

A V-port ball valve is a type of valve that integrates flow regulation and shut-off control through a ball with a V-shaped opening. It is used in pipeline systems that require both regulation characteristics and shut-off functions.

Specification

Parameter	Specification / Options
Model	P90VB or OEM
Construction	2-piece flanged split body (3-piece on request)
Size	1/2" – 8" (DN15–DN200)
Rating	ANSI 150–600 / PN10–100
Materials	ASTM A216 WCB / ASTM A351 CF8 / ASTM A351 CF8M
Seats	Soft or metal seated
Working Temperature	-196℃ to +400℃
Design Standard	ANSI B16.34 / ASME VIII° Div. 1 / EN 12516-1
Face to Face	ASME B16.1 / EN 558-1 F4 (PN) / EN 558-1 F5 (PN)
Stem Design	Anti blow-out
Mounting Pad for Actuator	ISO 5211
Tightness Class	API 598 Cl. A / ASME B16.104 / FCI 70-2 Cl. VI / GOST 54808 Cl. A / EN 12266-1 / ISO 5208

Features

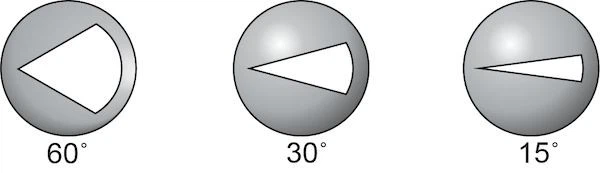

Flow Rate Settable: The V-shaped opening gradually changes its channel area with rotation, maintaining a fixed relationship between flow rate and opening degree. The control system can set the target flow rate according to the opening degree.

Prevents Particle Clogging: The V-shaped opening edge generates shear during opening and closing, cutting off particles and fibers which are carried away by the fluid, reducing accumulation in the valve cavity and sealing surface.

One Valve Replaces Two: The seal meets API 598 Class A and EN 12266-1 requirements when closed, allowing the same valve body to perform both regulation and shut-off functions simultaneously.

Applications

Petrochemicals: Used in process pipelines for flow regulation and media shut-off when necessary.

Paper and Pulp: Used for flow control of fibrous media, reducing the impact of blockages on transport.

Water Treatment: Used for the distribution, regulation, and isolation of media containing suspended solids.

Power and Industrial Processes: Used for regulation, control, and maintenance isolation of steam and process fluid systems.

FAQ

Q: When is a V-type ball valve needed?

A: When a system requires continuous flow regulation (not just on/off switching), a V-type ball valve should be selected because its opening degree and flow rate have a calculable relationship.

Q: Can it be used with media containing particles?

A: Yes, it can. The V-port structure will cut off and remove particles, but the wear of the sealing surface needs to be checked regularly according to the hardness and content of the particles.

Q: How to select an actuator?

A: The actual torque should be calculated based on the maximum differential pressure and the commonly used opening range, and the actuator should be matched according to the ISO 5211 interface, rather than just referring to the no-load torque.
