Description

Technical Parameters

Product Introduction

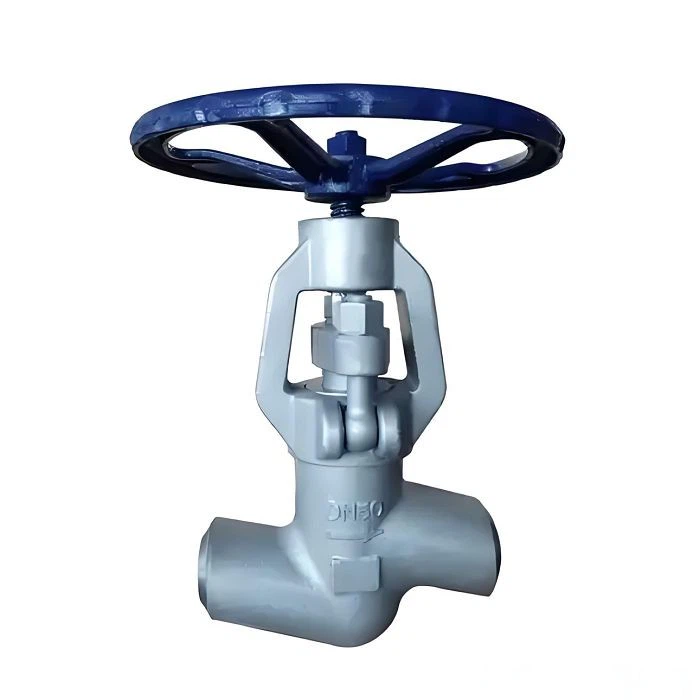

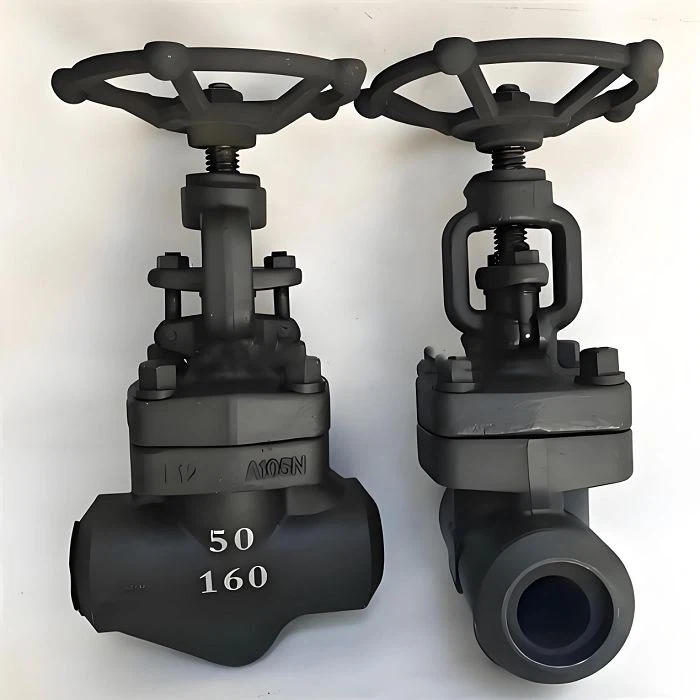

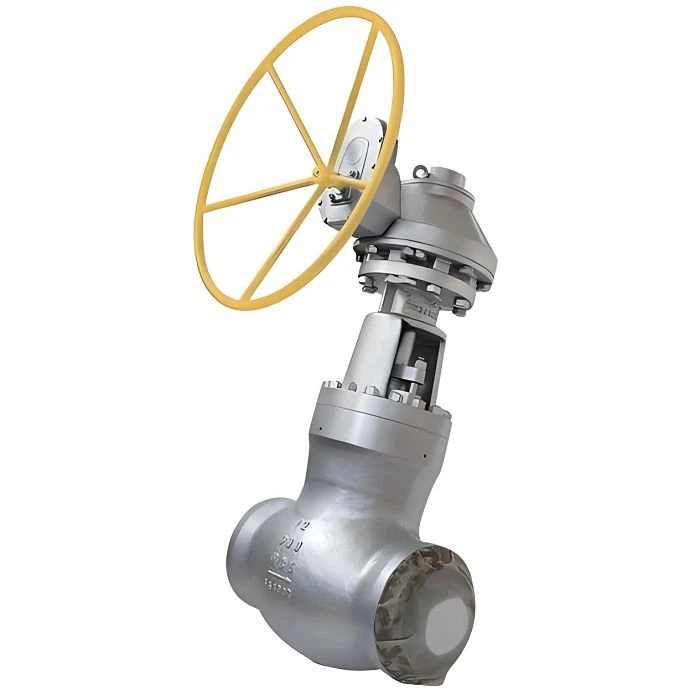

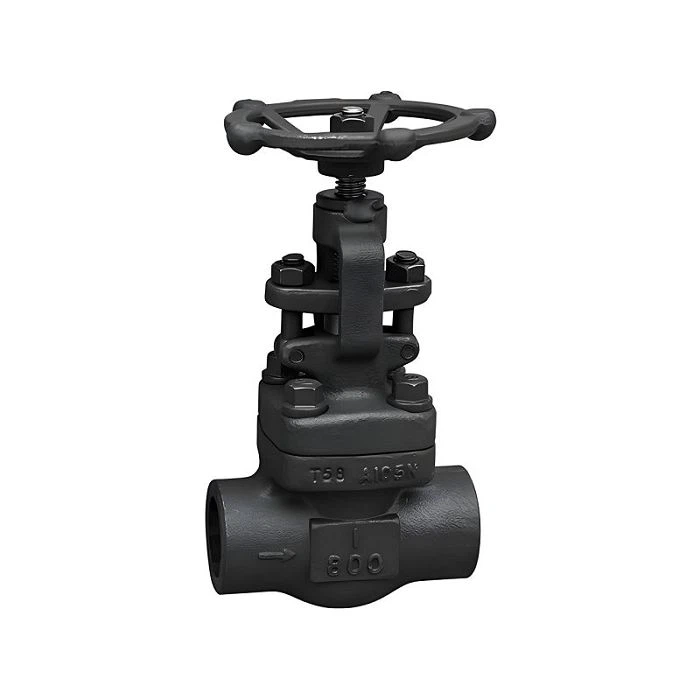

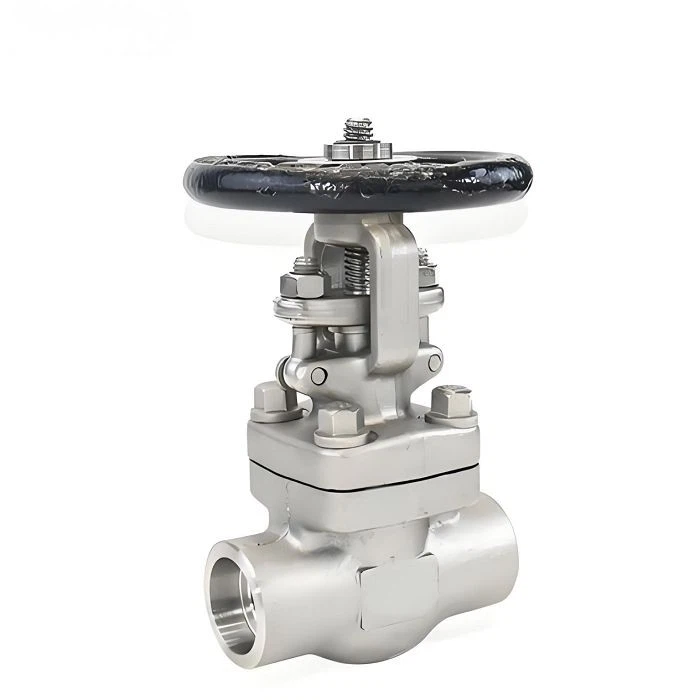

The Cryogenic Globe Valve is a shut-off valve designed for ultra-low temperature operating conditions down to -196°C. It is utilized for the flow control and reliable shut-off of LNG, liquefied natural gas, and other cryogenic media, making it suitable for applications in the petroleum, natural gas, chemical, and cryogenic storage and transportation sectors.

Technical Parameters

Model: PGB100B OR EOM

Size: Class 800-Class2500≤2"

OS &Y, Rising Stem

Plug Disc

Bolted Bonnet

Renewable Seat Rings Welded or Threaded

Flanged Ends or Butt welding Ends

Face to Face: ASME B16.10

End Flange: ASME B16.5

B.W. End: ASME B16.25

Test and Inspection: API 598

Manufacturing to NACE MR0103 on request

Core Advantages

Reliable Low-Temperature Operation: Features an extended bonnet and specialized low-temperature structural design to effectively prevent stem freezing.

High-Pressure Compatibility: Supports pressure classes 800 through 2500; utilizes a forged body structure capable of withstanding high-pressure shock.

Standardized Interface Design: Complies with ASME B16.10, B16.5, and B16.25 standards; supports both flanged and butt-weld connections to facilitate seamless system integration.

Customization Capabilities

Size	≤ 2"
Pressure	Class 800 / 1500 / 2500
Material	Low-Temperature Steel / Stainless Steel (LCB, LC1, etc.)
Connection	Flanged / Butt-Weld
Actuation	Manual / Pneumatic / Electric
Structural	OS&Y / Bolted Bonnet / Replaceable Seat
Standard	Customizable per NACE MR0103

Factory Capabilities

Specializing in High-Pressure and Low-Temperature Valve Manufacturing

CNC Machining + Precision Assembly Production Lines

100% API 598 Pressure Testing

Capable of Specialized Cryogenic and Leakage Testing

Compliant with API, ASME, and NACE Standards

Long-Standing Exporter to Europe, the Americas, the Middle East, and Southeast Asia

Supports OEM and Ensures Reliable Delivery of Bulk Orders

FAQ

Q: What is the lowest temperature at which your cryogenic globe valves can operate?

A: Our standard design is rated for LNG applications down to -196°C, making it suitable for long-term operation in deep cryogenic environments.

Q: Can you handle large-volume, long-term supply contracts?

A: Yes, we support stable mass production and are well-equipped to fulfill requirements for engineering projects and long-term purchase orders.

Q: Do you offer OEM/Private Labeling services?

A: Yes, we support customized production tailored to the client's specific brand, logo, and packaging requirements.

Q: What is the typical lead time for delivery?

A: For standard specifications, the lead time is approximately 15–30 days; for large-volume or customized orders, the timeline will be confirmed based on the specific quantity.

Q: Can you provide export documentation?

A: Yes, we provide standard export documentation, including Certificates of Origin (CO), Form E/A, inspection certificates, and other relevant documents.

Q: How do you ensure consistent quality across every batch?

A: We implement a comprehensive inspection process throughout the entire production workflow, combined with 100% pressure testing prior to shipment, to guarantee consistent quality and stability across all batches.

Q: Do you accept small-batch trial orders?

A: Yes, we welcome small-batch trial orders, allowing you to verify the quality of our products before proceeding with a large-scale purchase.

Q: What shipping methods are available?

A: We offer flexible shipping options including sea freight, air freight, and express courier services, arranged according to the specific order volume and required delivery timeline.
