Description

Technical Parameters

Product Introduction

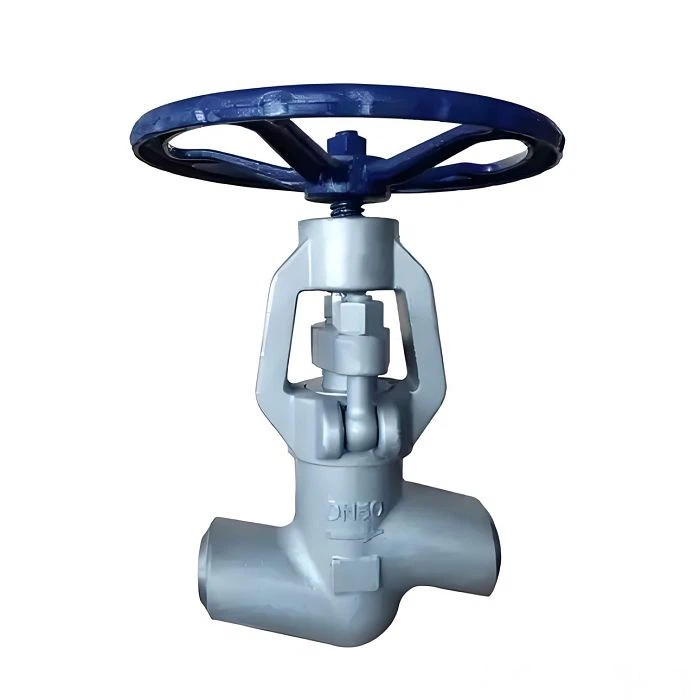

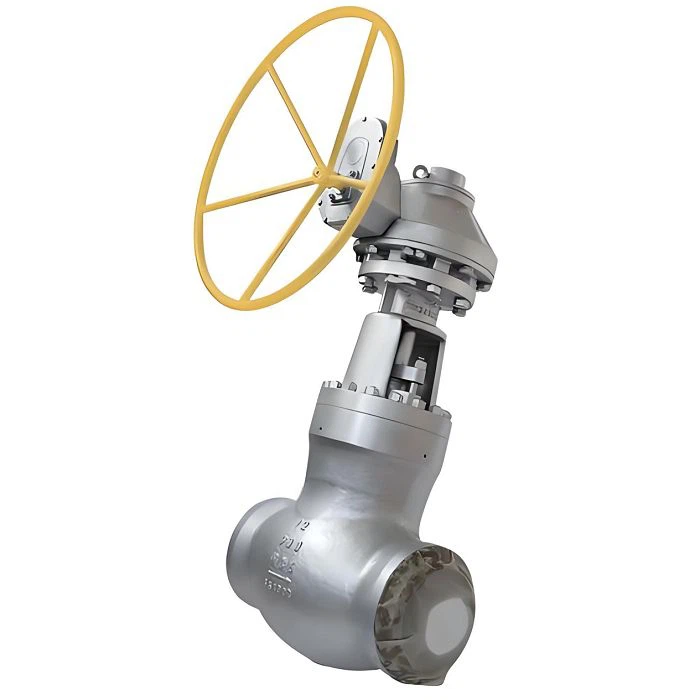

The Pressure Seal Globe Valve employs a self-tightening sealing structure and is suitable for flow regulation and shut-off control under high-temperature and high-pressure operating conditions; it is widely utilized in power plants, the petroleum and chemical industries, and steam systems.

Technical Parameters

Model: PGB100A OR EOM

Size: Class 600≤8", Class900 ≤4", Class1500≤2"

Full Port is optional

Outside Screw and Yoke (OS&Y),

Rotating Rising Stem

Bolted Bonnet or Welded Bonnet

Two-Piece Self-aligning Packing Gland

Integral Backseat

Loose Solid Disc

Threaded Ends or Socket Welding Ends

Needle Plug Type available

Extended Body or Pup Ends available

Basic Design: API 602 ISO 15761 ASME B16.34

Socket Welding End (S.W): ASME B16.11

Threaded End (T.E): ASME B1.20.1

Test and Inspection: API 598

API 622 Packing, API 624 certified, available upon request, ISO 15848-1 certified

Customization Capabilities

Size Customization	Multiple size specifications covering diverse piping systems
Material Customization	Carbon Steel / Stainless Steel / Alloy Steel / High-Temperature Alloys
Pressure Rating Customization	Suitable for medium-to-high pressure and ultra-high pressure applications
Connection Type Customization	Flanged / Welded Ends

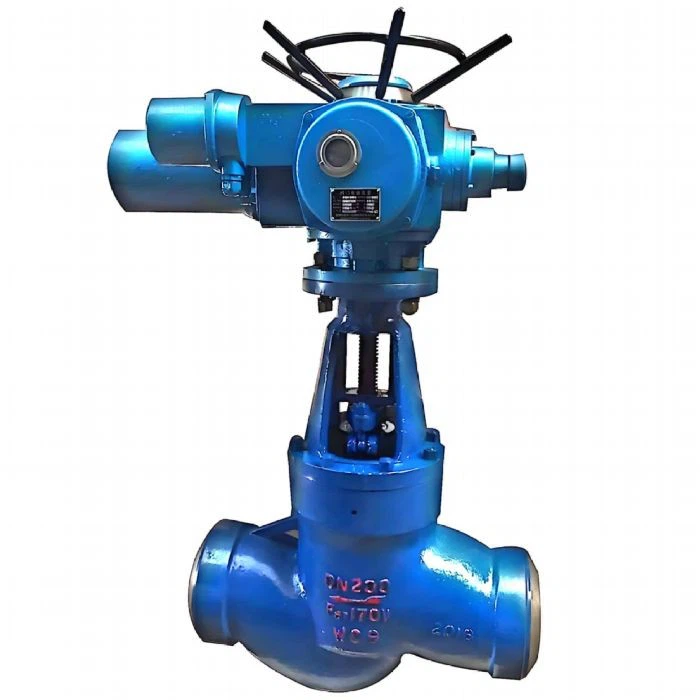

Actuation Method Customization	Manual / Gear-Operated / Electric / Pneumatic
Standard Customization	ANSI / API / DIN / OEM Customization
Special Application Customization	High-temperature steam, corrosive media, etc.

Factory Capabilities

Production Capacity

Complete production line (machining + assembly + testing), supporting stable batch delivery.

Equipment Configuration

Fully equipped with CNC machining centers and precision inspection equipment.

Standard Compliance

Manufactured in strict accordance with ANSI / API standards.

Quality Control

Comprehensive quality inspection throughout the entire process, plus factory pressure testing.

Testing Capabilities

Full coverage of sealing and strength testing.

Export Experience

Serving global wholesale clients with stable and reliable delivery.

FAQ

Q: Do you support long-term, stable supply?

A: Yes. We can establish a long-term supply relationship to ensure the continuous delivery of bulk orders.

Q: Can prices be locked for large-volume orders?

A: Yes. Long-term partners can lock in prices for specific periods.

Q: Do you support split shipments?

A: Yes, we support phased deliveries, which is ideal for engineering projects and inventory management.

Q: Do you support mixed shipments of different specifications?

A: Yes, we support shipping multiple specifications within a single order.

Q: Can you provide production progress updates?

A: Yes. We can provide regular updates on production progress and shipping schedules.

Q: Do you support delivery to the destination port?

A: Yes, we can accommodate various trade terms such as FOB, CIF, and DDP.

Q: Is the packaging suitable for long-distance sea freight?

A: Yes, our standard export packaging is suitable for sea freight and long-distance transportation.
