Wuxi PYNOS Flow-tech Co., Ltd. : Your Professional Gate Valve Supplier in China
PYNOS VALVE is a professional valve manufacturer integrating research, development, testing, production, sales, and after-sales service. Additionally, we are equipped with world-class valve processing and manufacturing equipment.
Advanced Production Equipment
Our factory is equipped with advanced CNC lathes, boring machines, CNC grinding machines, drilling machines, milling machines, and planers.
Wide Applications
Our products are widely used in the petroleum, chemical, power, natural gas, and coal chemical industries.
Guaranteed Quality
Our products have obtained multiple certifications, including ISO 9001, CE, and SIL3.
Customizable
The materials, dimensions, and connection methods of our products can all be customized.
-
![Slap Gate Valve]()

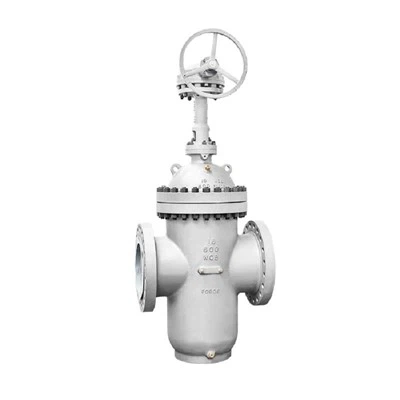

Slap Gate ValveSlap Gate Valve is a gate valve used for pipeline medium isolation and full-circuit flow control. It can be ordered in bulk and customized according to pressure level and size.read more -
![Expanding Gate Valve]()

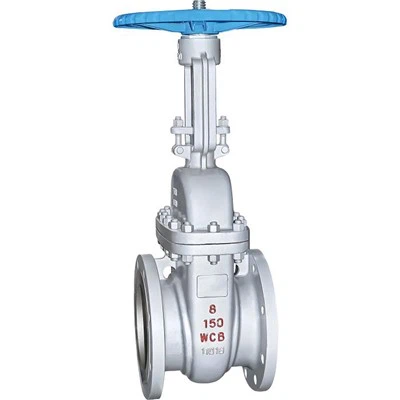

Expanding Gate ValveExpanding Gate Valve is a full-bore shut-off valve for pipeline media isolation, available for bulk ordering or custom-made to suit specific operating conditions.read more -
![API 6A Gate Valve]()

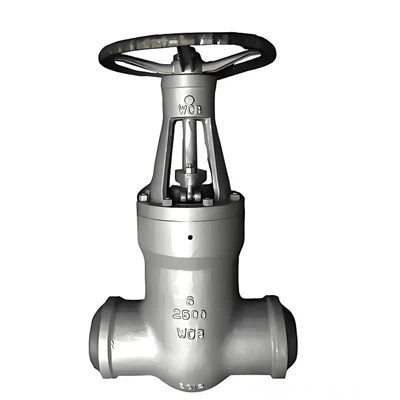

API 6A Gate ValveAPI 6A gate valves are high-pressure valves that conform to the American Petroleum Institute (API) standard and are used in the oil and gas industry, particularly in wellhead equipment, high-pressureread more -
![Flanged Cryogenic Gate Valve]()

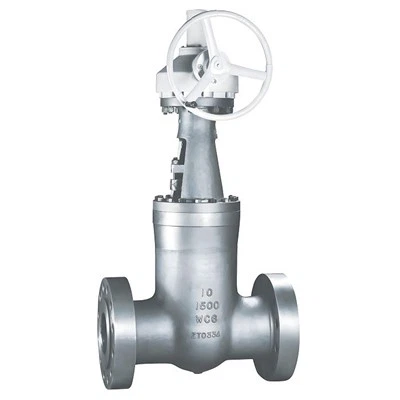

Flanged Cryogenic Gate ValveA flanged cryogenic gate valve is an isolation valve designed for pipelines carrying cryogenic media such as liquefied natural gas, liquid oxygen, and liquid nitrogen.read more -
![Pressure Seal Gate Valve]()

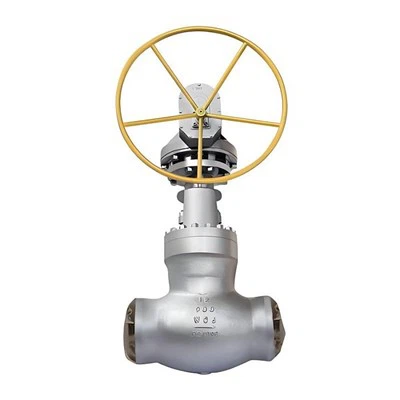

Pressure Seal Gate ValvePressure seal gate valves are industrial valves that combine high pressure resistance, high temperature resistance, high reliability, and ease of operation. They are widely used in thermal powerread more -
![Slide Gate Valve]()

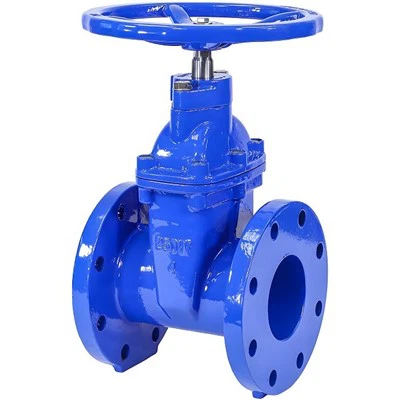

Slide Gate ValveA slide gate valve is a type of valve that controls flow by sliding a flat plate (gate) into the flow path to block or allow material to pass through. These valves are commonly used for free-flowingread more
Introduction
A Gate Valve is a type of linear-motion valve used to start or stop fluid flow in a pipeline. It works by lifting a flat or wedge-shaped gate (disc) up and down to open or close the flow path.
Specification
|
Product name |
Gate valve |
|
Size Range |
2"～48" |
|
Pressure Range |
150LB～2500LB |
|
End Connection |
Flanged end /Butt welding end |
|
Operation |
Manual operation,Actuated operation |
|
Body |
Carbon steel,Stainless steel,Duplex Stainless steel,etc. |
|
Trim |
Carbon steel+ENP,Alloy steel+ENP,Stainless steel,Duplex stainless steel,etc. |
Features of Gate Valve
-
Full Bore Design
The flow path is straight. Pressure loss is very low when fully open.
-
Tight Shut-off
The gate provides good sealing when fully closed.
-
Bidirectional Flow
Most gate valves can work in both flow directions.
-
Slow Operation
The valve opens and closes gradually, which reduces water hammer.
Common Types of Gate Valves
Rising stem gate valve
The stem moves up and down, showing valve position.
Non-rising stem gate valve
The stem rotates but does not move vertically.
Wedge gate valve
Uses a solid, flexible, or split wedge for sealing.
Parallel slide gate valve
Uses parallel discs for high-temperature service.
Certificate
FAQ
We're well-known as one of the leading gate valve manufacturers and suppliers in China. If you're going to buy high quality gate valve, welcome to get more information from our factory. Customized orders are welcome.
