Wuxi PYNOS Flow-tech Co., Ltd. : Your Professional Solenoid Valves Supplier in China
PYNOS VALVE is a professional valve manufacturer integrating research, development, testing, production, sales, and after-sales service. Additionally, we are equipped with world-class valve processing and manufacturing equipment.
Advanced Production Equipment
Our factory is equipped with advanced CNC lathes, boring machines, CNC grinding machines, drilling machines, milling machines, and planers.
Wide Applications
Our products are widely used in the petroleum, chemical, power, natural gas, and coal chemical industries.
Guaranteed Quality
Our products have obtained multiple certifications, including ISO 9001, CE, and SIL3.
Customizable
The materials, dimensions, and connection methods of our products can all be customized.
-
![Pilot Acting Explosion Proof Solenoid Valve]()

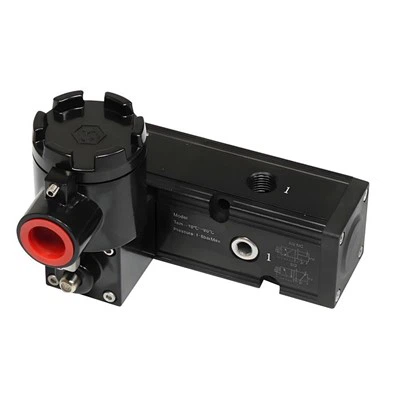

Pilot Acting Explosion Proof Solenoid ValveThe pilot-acting explosion-proof solenoid valve uses the pressure differential of the medium to assist valve operation, enabling reliable opening and closing, and is designed for use in hazardousread more -
![Direct Acting Explosion Proof Solenoid Valve]()

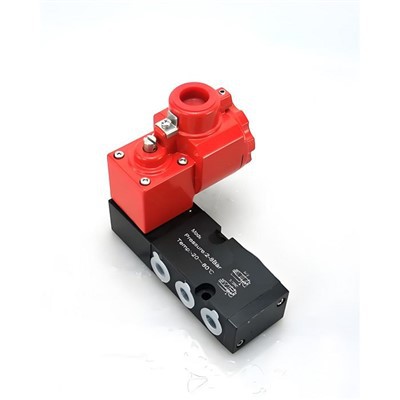

Direct Acting Explosion Proof Solenoid ValveDirect-acting explosion-proof solenoid valve is designed for safe and reliable fluid control in hazardous environments where flammable gases, vapors, or liquids are present.read more
Introduction
A solenoid valve is an electrically controlled valve used to regulate the flow of liquids or gases in a system. It uses a solenoid, which is a coil of wire that becomes an electromagnet when energized, to move a plunger or diaphragm that opens or closes the valve.
Features of Solenoid Valves
Fast and Precise Control
The solenoid coil enables rapid opening and closing of valves, thus precisely controlling flow rate and system pressure.
Multiple Operating Modes
Our products are available in both direct-acting (suitable for low-pressure, low-flow systems) and pilot-operated (suitable for high-pressure, high-flow systems) types.
Multiple Connection Methods and Port Options
Standard options include two-way, three-way, and four-way valves, with connection options including threaded, flanged, or quick-connect.
Adaptable to Diverse Operating Conditions
Our products can withstand a wide range of temperatures, pressures, and fluid viscosities, and can operate in harsh or corrosive environments.
Specification
|
Product name |
Solenoid valves |
|
Working Voltage |
24/110 VDC-3.5W;110/120/220/240VAC-4VA(50/60HZ) |
|
Working Medium |
Less than 40μm filtered and dried air,0～8 bar |
|
Flow rate (Orifice) |
CV=0.08(1.3mm),Optional CV=0.42(3mm) |
|
Function &air port |
3/2 direct acting,spring return,NC&ø3mm |
|
Working Temperture |
-20℃～60℃,Optional-40℃～60℃ |
|
Area Classification |
Exd IIC T6Gb(Class l Zone 1) |
Applications
-
Water Treatment Systems
Solenoid valves regulate the flow of water in filtration, purification, and irrigation systems.
-
HVAC and Building Automation
Used in heating, ventilation, and air conditioning to control air, water, or refrigerant flow.
-
Industrial Automation and Machinery
Controls air, hydraulic fluids, or other industrial media in automated machines, assembly lines, or processing plants.
-
Oil & Gas Pipelines
Used to manage the flow of oil, natural gas, and other hydrocarbons safely.
Customization Options
Material Selection
Solenoid valves can be customized in brass, stainless steel, or high-quality plastic.
01
Port Size and Connection Type
Valves are available in multiple port sizes (1/8" to 1") and connection types including threaded, flanged, quick-connect, or compression fittings.
02
Operating Mode
Choose between direct-acting for low-pressure, small-flow systems, pilot-operated for high-pressure, large-flow applications, and normally open / normally closed configurations.
03
Voltage and Coil Options
Coils can be customized for AC (110V, 220V) or DC (12V, 24V), including options for high-temperature, explosion-proof, or energy-saving coils.
04
Seal and Diaphragm Materials
Seals and diaphragms can be customized with NBR, EPDM, Viton, PTFE, or other materials suitable for different fluids.
05
Certificate
FAQ
We're well-known as one of the leading solenoid valves manufacturers and suppliers in China. If you're going to buy high quality solenoid valves, welcome to get more information from our factory. Customized orders are welcome.
