Actuator Supplier in China
Reliable valve automation solutions designed for industrial control systems. We supply pre-assembled ball valves with actuators, ensuring accurate torque matching, stable performance, and fast installation.
-
![Rack and Pinion Pneumatic Actuator]()

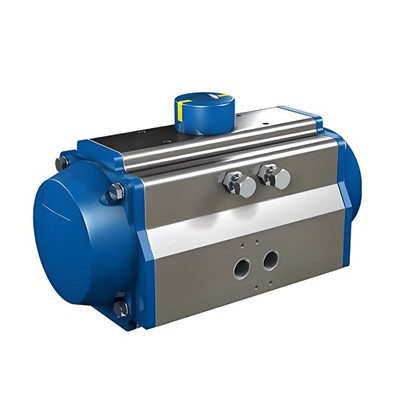

Rack and Pinion Pneumatic ActuatorA Rack and Pinion Pneumatic Actuator is a device that utilizes compressed air to drive a rack-and-pinion mechanism, thereby enabling 90-degree opening and closing control of valves. It is suitableread more -
![Skotch Yoke Actuator]()

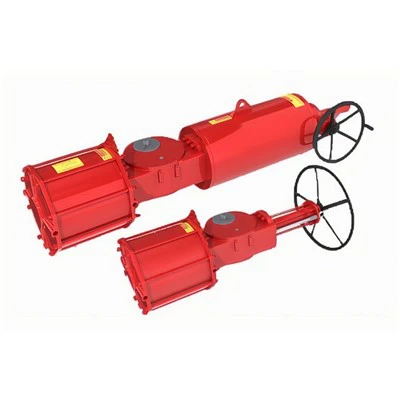

Skotch Yoke ActuatorThe Scotch Yoke Actuator is a device that converts pneumatic linear motion into rotary output through a fork mechanism, used to drive valves such as ball valves and butterfly valves to achieveread more -
![Rotary Electric Actuator]()

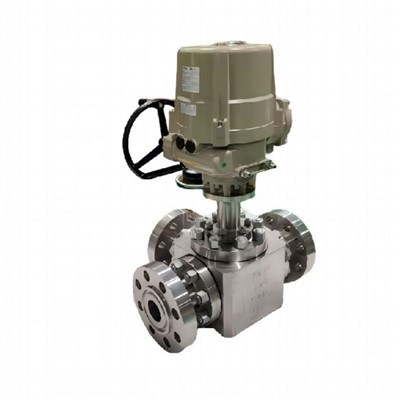

Rotary Electric ActuatorA rotary electric actuator is a device that uses a motor to drive the output shaft to rotate, and is used to drive ball valves, butterfly valves, etc. to achieve opening, closing, or regulationread more
Specification
|
Product name |
Actuator |
|
Torque Range |
JYH: 30-20000Nm |
|
Motion Range |
0-90°, 0-110°, 0-145°, 0-180°, 0-270° |
|
Ambient Temp |
-30º C~+60º C |
|
Open/Close Time |
5S-40S / 8S-112S |
|
Actuator Body |
Aluminium Alloy |
|
Protection Class |
IP67,IP68 |
Key Features
Perfect Valve–Actuator Matching
Each unit is engineered and tested to ensure compatibility, eliminating mismatch risks.
Plug & Play Installation
Pre-assembled systems reduce installation time and simplify on-site work.
Automation Ready
Compatible with PLC, DCS, and industrial control systems.
Actuator Matching & Selection Guide
Selecting the correct actuator is critical for reliable operation.
Torque Matching Principle
Actuator output torque must exceed valve operating torque with a safety factor (typically 1.2–1.5) to ensure smooth operation under all conditions.
Key Selection Factors
- Valve size and pressure rating
- Working medium (gas, liquid, corrosive fluids)
- Operating temperature
- Frequency of operation
- Control requirements (on/off or modulating)
Typical Selection Reference
|
Valve Size |
Pressure Class |
Estimated Torque |
Recommended Actuator |
|
DN50 |
Class 150 |
Medium |
Electric Actuator |
|
DN200 |
Class 600 |
High |
Pneumatic Actuator |
Quality Control System
Dynamic Torque Testing: Real-time measurement of output torque throughout the entire 0-90° stroke to ensure 100% compliance with valve requirements.
Cycle Life Simulation: Our actuators undergo accelerated life testing (up to 10,000+ cycles) to guarantee years of maintenance-free operation.
Motor Insulation & Power Analysis: Rigorous testing of current, voltage, and heat dissipation to prevent motor burnout under peak loads.
IP67/IP68 Waterproof Test: Submersion testing to ensure the integrity of the aluminum alloy housing and seals.
High & Low Temperature Chamber: Stability verification across a wide range, from -30°C to +60°C, ensuring no mechanical seizure or electronic failure.
Salt Spray Testing: Validating the anti-corrosion performance of our coatings, essential for marine and chemical plant applications.
FAQ
As one of the leading actuator manufacturers and suppliers in China, we offer a wide range of products with superior quality. We warmly welcome you to buy high quality actuator made in China here from our factory. We also accept customized orders.
