Introduction

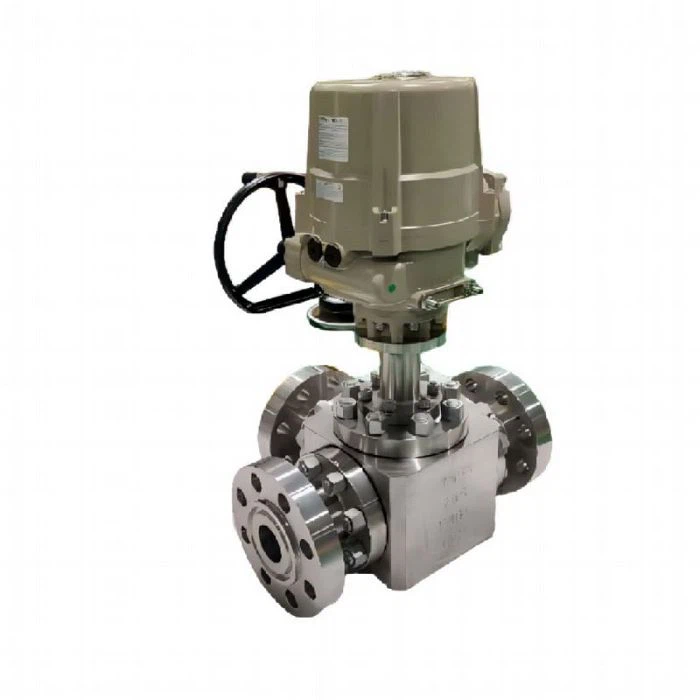

The rotary electric actuator is a type of actuator that converts electrical energy into controlled rotational motion or torque, enabling the operation of valves, dampers, or other mechanical devices that require precise angular positioning.

Parameter

Maximum output torque is 2000N•M

JYH series is explosion-proof (Ex d IIC T5 Gb)

Quarter turn (90°) rotation or 110°~270° customized

Mechanical travel stops

Visual valve position indicator

ISO 5211 mounting pattern for valve

Manual override

Female double square output drive

Heavy-duty motor with overload protection

Self-lock function

Low-friction bearings on all moving and sliding surfaces

Cover with anodized treatment and polyester powder coating

Torque Range: JYH: 30-20000Nm

Motion Range: 0-90°, 0-110°, 0-145°, 0-180°, 0-270°

Ambient Temp: -30º C~+60º C

Open/Close Time: 5s -40s / 8s -112s

Actuator Body: Aluminum Alloy

Protection Class: IP67, IP68

Type: On-off, Modulating (Regulating), Passive Contact

Features

Self-locking Structure

Features a self-locking function to prevent the valve from rotating in reverse when there is no power.

Corrosion-resistant Housing

The housing of the rotary electric actuator is made of aluminum alloy with anodizing and polyester powder coating, providing excellent corrosion resistance.

High Protection Rating

With an IP67/IP68 protection rating, it effectively prevents dust and water ingress.

Products Description

Q: Which shipping way can you provide?

A: We can provide shipping by sea, by air and by express.

Q: What's your after-sale service?

A: Our quality warranty period is 12 months. Any quality problem will be solved to customer satisfactions.

Q: Can we get some samples? Any charges?

A: Yes, free existing labels, you need to pay shipping cost.

Q: How can we get a quote?

A: Contact us with specification: such as material, design, size, Pressure rating , etc.

Q: Can you help with the design?

A: Yes, Simply design free, special design need to pay.
