Description

Technical Parameters

Introduction

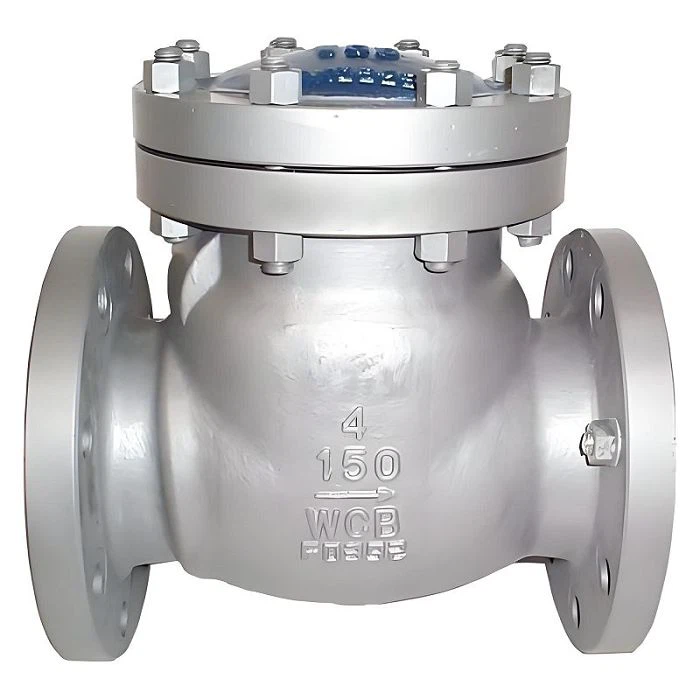

A cryogenic check valve is a type of valve specifically designed for fluid systems in extremely low-temperature environments. Its primary function is to prevent backflow of liquids or gases in cold chain systems, thereby protecting equipment and maintaining stable system operation.

Parameter

Molde	PHC100 OR EOM
Size Range	2"～30"
Pressure Range	150LB~2500LB
End Connection	Flanged end /Butt welding end
Valve Direction	Uni-directional
Temperature Range	Down to -196℃
Service	LNG/LN₂/LO₂ terminals, Air separation plants, LNG/LN₂/LO₂ transportation, and more
Material	Body: A351 CF8M, and more, Trim: HF/HF
Basic Design	API594, ASME B16.34, BS 1868, MESC SPE 77/200
Face to Face	ASME B16.10
Flange End	ASME B16.5
Butt Welding End	ASME B16.25
Test and Inspection	API 598, MESC SPE 77/200
Fire-safe Test	API 6FA or API 607
Manufacturing to the NACE latest version on request
BS 6364, MSS SP-134 are also available
CSA Z245.15 latest version compliance is available

Features

Unidirectional Flow

The unidirectional valve core structure ensures that fluid flows in only one direction, preventing the backflow of low-temperature liquids.

Low Leakage Risk

High-precision seals and valve stem packing design reduce gas or liquid leakage.

Low-Temperature Durability

Stainless steel and HF valve bodies and seals ensure that the valve maintains corrosion resistance and pressure resistance at -196°C.

Installation Compatibility

The flange and butt-weld end designs of the Cryogenic Check Valve facilitate quick connection to different piping systems.
