Introduction

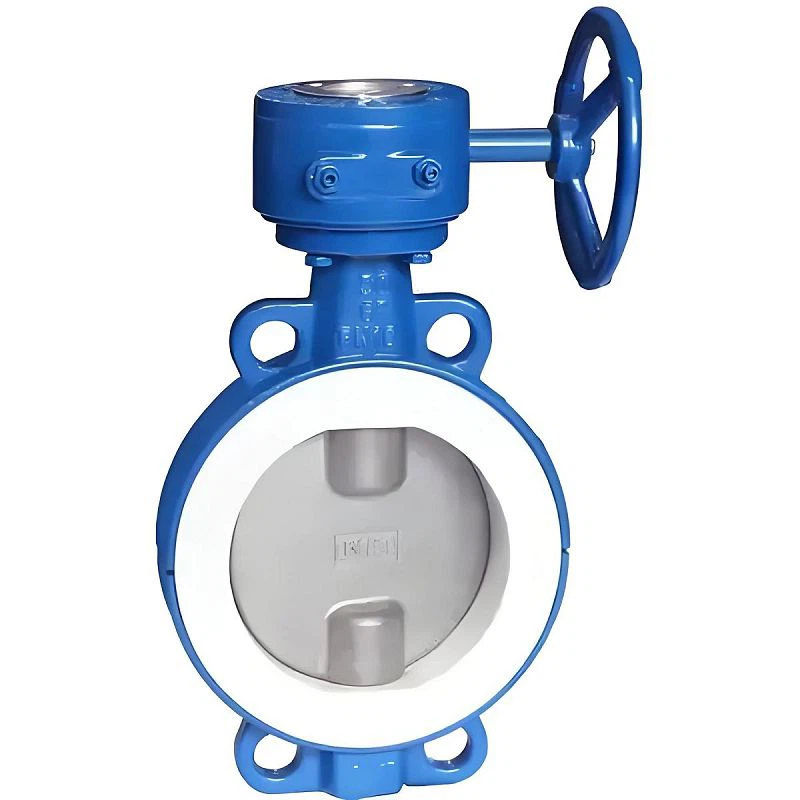

Lined Butterfly Valve is a corrosion-resistant butterfly valve designed for conveying corrosive liquids and gases. It is available in bulk and can be customized.

Parameter

Parameter / Feature	Specification / Standard
Model	PLB100 or OEM
Size Range	2" – 24"
Pressure Range	ANSI 150 / PN10-16
End Connection	Wafer / Lug / Double Flange
Bore Type	Full Bore
Operation	Manual Operation / Actuated Operation
Body Material	CF3, CF3M, CF8, CF8C, CF8M, etc.
Disc Material	CF3, CF3M, CF8, CF8C, CF8M, etc.
Seat Type	Soft Seat in PCTFE, Metal-to-Metal, Metal + Graphite
Additional Notes	Additional sizes and pressure classes available upon request
Basic Design	API 609, EN 593
Face-to-Face Dimension	ASME B16.10, EN 558
Flange End	ASME B16.5 (up to 24"), ASME B16.47 Series A or B
Test and Inspection	API 598, EN 12266
Fire-Safe Test	API 607
Fugitive Emission Test	ISO 15848-2
Type Testing for Fugitive Emission	ISO 15848-1, API 641

Features of Lined Butterfly Valve

Corrosion Resistance

The Lined Butterfly Valve uses a PTFE or PFA lining, providing long-term resistance to acids, alkalis, and organic solvents, with a service life of over 8 years.

High and Low Temperature Resistance

The PCTFE soft seal can operate in environments ranging from -196℃ to +150℃, suitable for cryogenic liquid oxygen or liquid nitrogen conditions.

Precision Machining

The valve body and valve plate have a fit tolerance of ≤0.2mm, and CNC-machined surfaces ensure reliable sealing.

Wide Applications

Suitable for pipeline control of corrosive liquids in industries such as chemical, pharmaceutical, food and beverage, water treatment, and petrochemicals.

Customization

Parameter	Specification / Options
Lining Material	PTFE, PFA, GF2P, Rubber, etc.
Valve Body Material	CF3, CF3M, CF8, CF8C, CF8M Stainless Steel
Valve Size	2" ~ 24", other non-standard sizes supported
Connection Method	Wafer, Lug, Double Flange (customizable)
Operation Method	Manual, Worm Gear, Pneumatic, Electric Actuation
Sealing Type	Soft Seal, Metal Seal, Metal + Graphite Composite Seal (customizable)

FAQ

Q: Are the installation requirements high?

A: The Lined Butterfly Valve requires concentric piping during installation, allowing the butterfly plate to rotate freely to ensure sealing and operational accuracy.

Q: Does it support automated operation?

A: Yes. The Lined Butterfly Valve can be configured with pneumatic or electric actuators for automatic control.

Q: Is the liner prone to falling off?

A: No. The Lined Butterfly Valve liner is integrally molded and tightly integrated with the valve body, ensuring long-term stability.
