Introduction

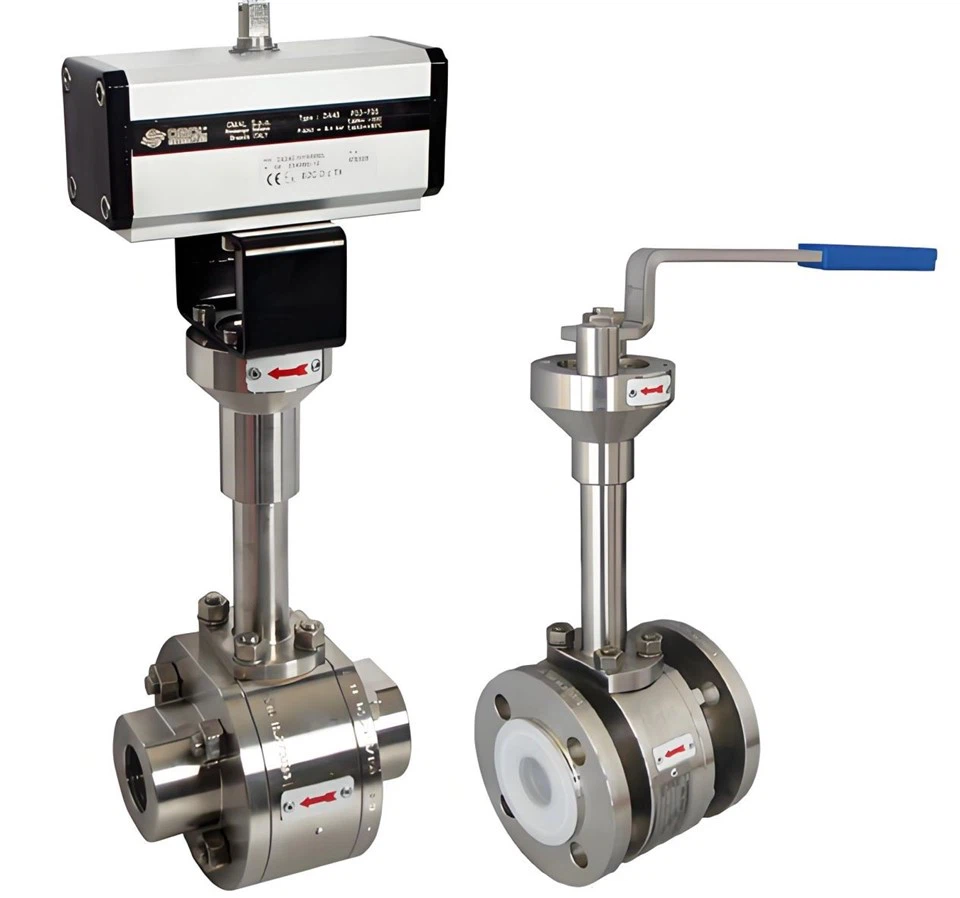

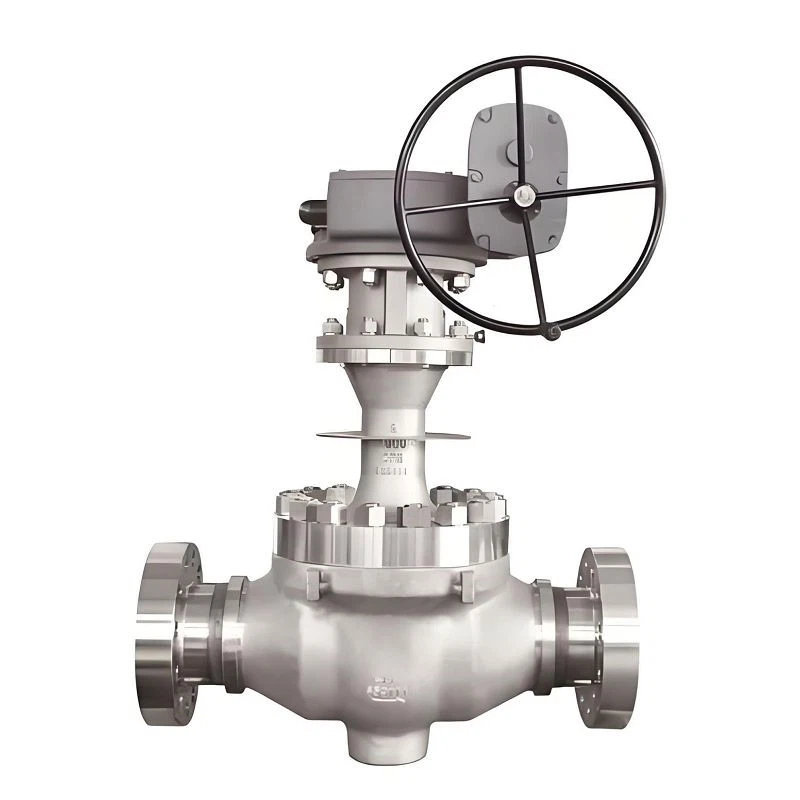

High-Quality Cryogenic Ball Valves are valves for controlling cryogenic liquids and gases, suitable for liquid nitrogen, liquid helium, LNG, and LPG, available in bulk and customizable.

Parameter

Parameter	Specification / Description
Model	P100CB or OEM
Construction	3-piece flanged split body, top entry or side entry
Size	1/2" – 24" (DN15 – DN600)
Rating	PN10-210 / ANSI 150-1500
Connection	RF flange or others on request, ASME B16.5
Materials	ASTM A105 / ASTM A479 F304 / ASTM A479 F316
Seats	Soft seal or metal seated
Mounting Pad for Actuator	ISO 5211
Working Temperature	-196 ℃ to +400 ℃
Face-to-Face Standard	ANSI B16.34 / ASME VIII Div.1 / EN 12516-1
Flange Facing	RF according to EN 1092-1 PN 63-100, ASME B16.5, ANSI 600
Flange Drilling	Metric holes EN 1092-1 PN63-100 / ASME B16.5 / ANSI 600
Tightness Class	API 598 Cl. A / ASME B16.104 / FCI 70-2 Cl. VI / GOST 54808 Cl. A / Grade A (Zero Leakage) acc. EN 12266-1 / ISO 5208
Stem Design	Anti blow-out

Features of High Quality Cryogenic Ball Valves

Durable

High-quality cryogenic ball valves use 316L or cryogenic alloy bodies with a service life exceeding 10 years.

Precision Sealing

Valve core and seat tolerance ≤0.05 mm, lip seal achieves zero leakage.

High Pressure Resistance

Valve body can withstand pressures up to 25 MPa, three-piece structure ensures long-term safety under high pressure.

Easy Maintenance Design

Side-entry structure facilitates valve core and seal replacement, making installation and maintenance more convenient.

Customization

Feature	Options / Description
Valve Body Material	Optional 316L, 304, or cryogenic alloy materials
Seat Seal	Soft seal or metal hard seal
Actuation Method	Manual, pneumatic, or electric (customizable)
Valve Size	DN15 to DN600
Interface Standard	ANSI, DIN, JIS, flanged or threaded connections
Valve Body Surface Treatment	Polished or sandblasted

FAQ

Q: How to clean?

A: High Quality Cryogenic Ball Valves can be cleaned using a low-temperature compatible cleaner to rinse the valve body and ball.

Q: Installation Precautions?

A: Keep the pipeline horizontal to avoid stress concentration.

Q: Are the parts replaceable?

A: Yes. The ball, seat, and seals are removable and replaceable; parts are available from the factory.

Q: Maintenance Frequency?

A: We recommend checking the seals and lubrication every 6-12 months. We provide a detailed maintenance guide.
